How do I pair a sensor?

Before pairing can occur, the Health Care Professional or Program Administrator must assign the sensor and inhalers to the patient account in the Hailie Smartinhaler web portal.



View the Getting Started with your sensor guides for information related to a particular sensor model.

When the Hailie® Smartinhaler® app is open on the mobile device, the app automatically detects nearby sensors that are in pairing mode.

A sensor in pairing mode is indicated by a flashing blue LED, and flashes for up to 60 seconds (unless it pairs first).

Handy Tips

  • Rechargeable sensors:  Charge the sensor before pairing.
  • Sensors with a pull-tab:  Remove the pull tab before trying to pair.
  • Before pairing:  Go to the mobile device settings and make sure Bluetooth, location services (Android) and mobile data / WiFi are activated.

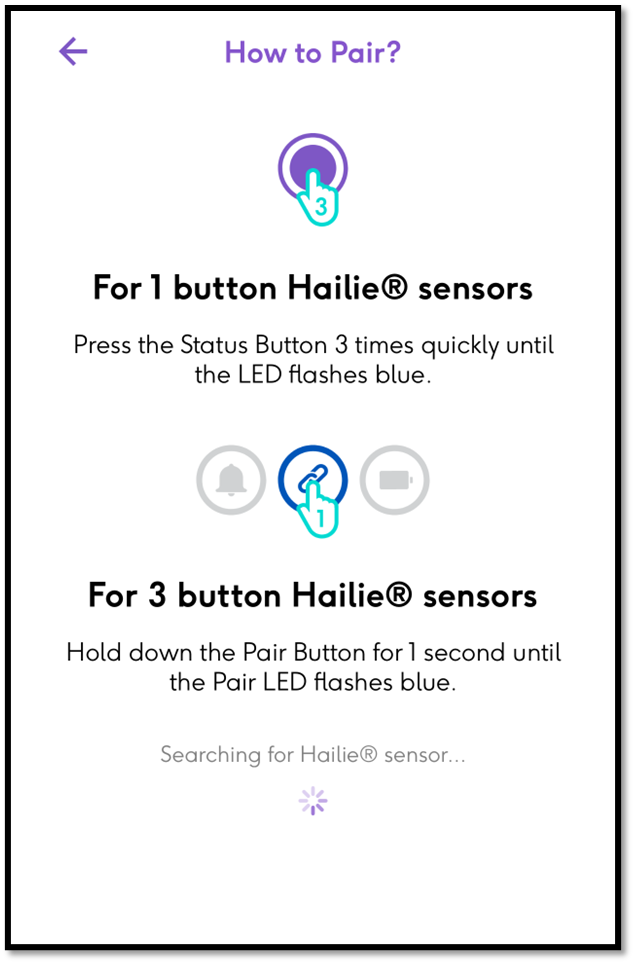

Activate Pairing Mode on Sensor

One button sensors:

  • 3 short presses of the sensor status button.  The LED will flash blue for 60 seconds.  If this is the first time using your sensor, the LED might flash green, and then blue after a few seconds.
  • Repeat this if the sensor did not pair.

Three button sensors:

  • 1 press of the sensor pair button until the LED flashes blue.  The LED will flash blue for 60 seconds.
  • Repeat this if the sensor did not pair.





Pair the Sensor

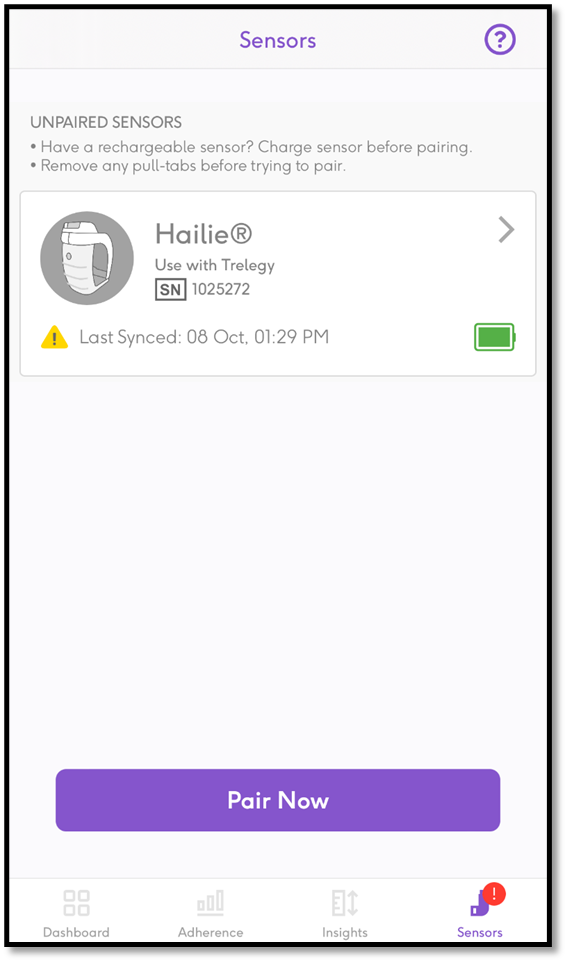

  1. Open the app and tap the Sensors tab.
  2. Any unpaired sensors will display on the dashboard with a PAIR NOW button.
  3. Tap PAIR NOW.
  4. Follow the on-screen instructions to activate pairing mode on the sensor.
  5. Make sure the sensor LED is flashing blue.  Pairing mode lasts up to 60 seconds.
  6. Follow the on-screen instructions to pair the sensor.
  7. The sensor LED will flash green when paired, or red if unsuccessful.
  8. If pairing was unsuccessful, repeat the process.
